Armored 40 ft Extension Cable with Souriau 851-06AC10-6S50 6-Pin Plug — MIL-DTL-26482 Series I, Shell Size 10-6, Bayonet
Armored 40 ft Extension Cable with Souriau 851-06AC10-6S50 6-Pin Plug — MIL-DTL-26482 Series I, Shell Size 10-6, Bayonet
Couldn't load pickup availability
A long, fully armored extension cable terminated with a genuine, part-number-verified Souriau 851 plug.

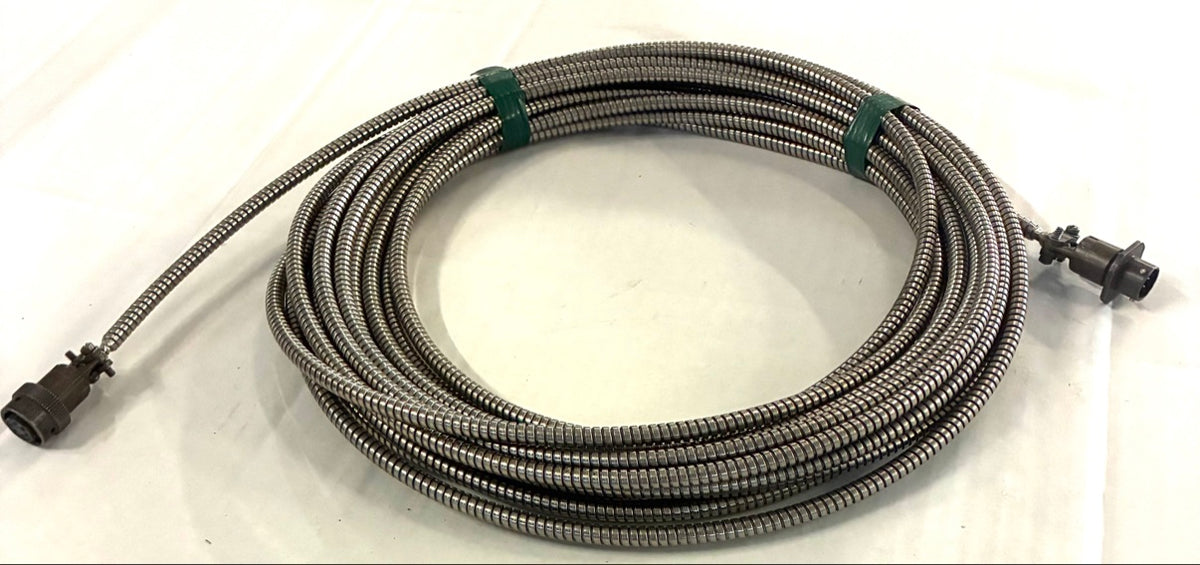

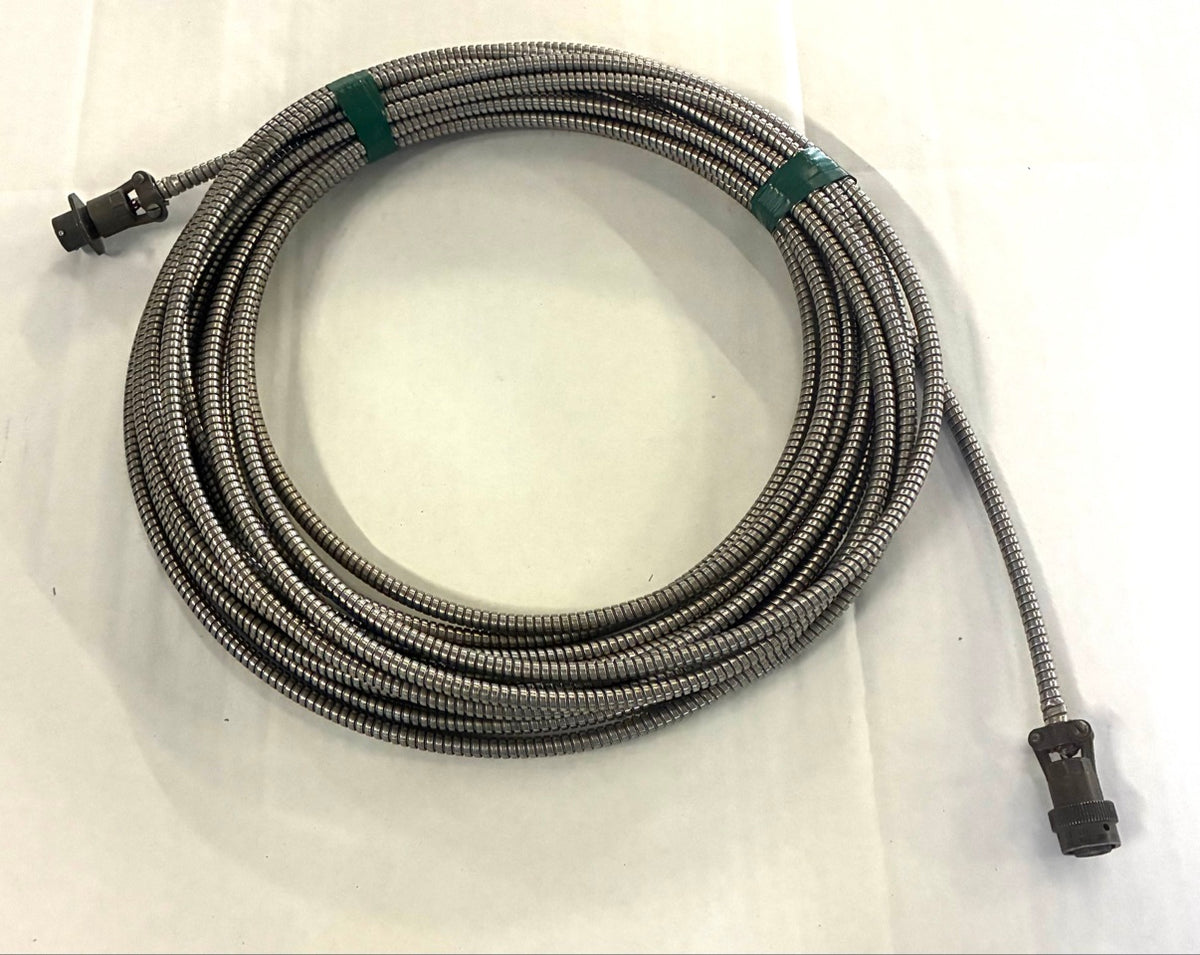

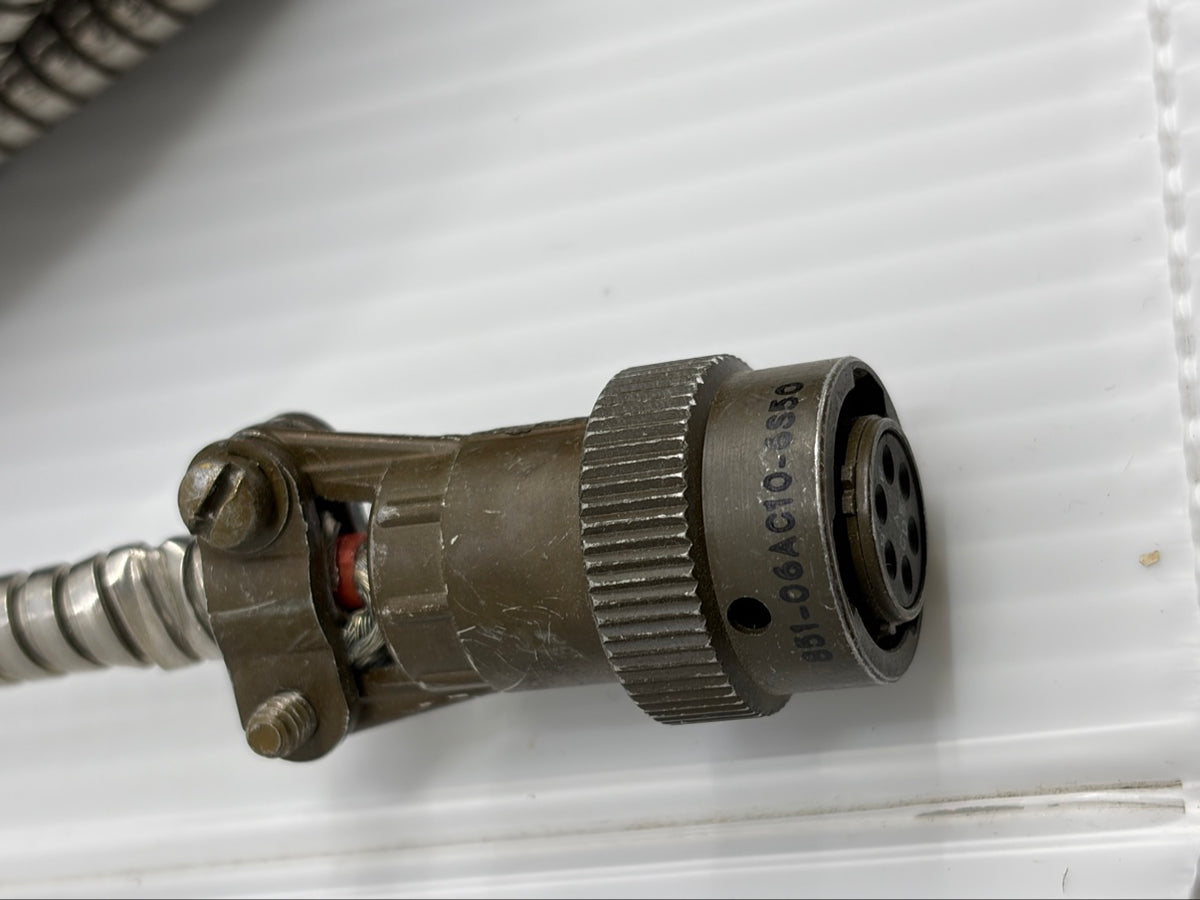

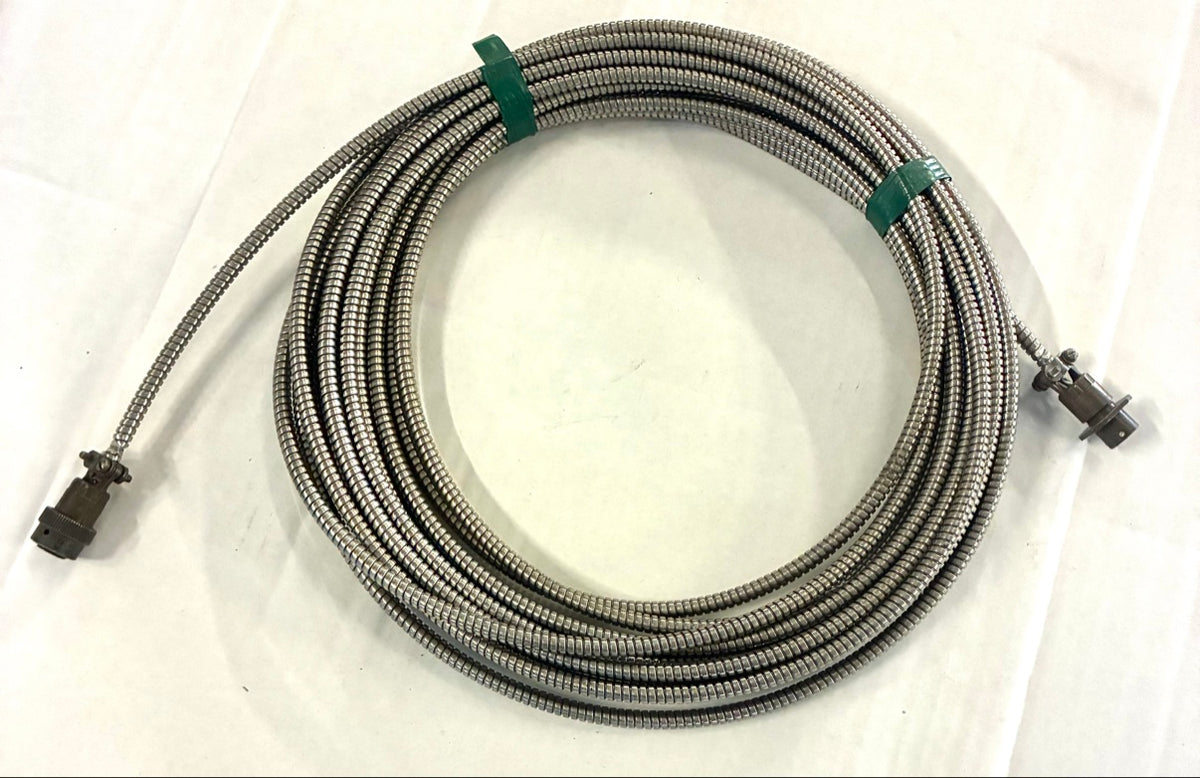

This male-to-female extension cable is built inside interlocked flexible metal conduit for the full 40 ft run. The female end is a Souriau 851 Series plug, part number 851-06AC10-6S50, stamped on the coupling nut and photographed in this listing: shell size 10, layout 10-6 with six size-20 socket contacts, adaptor backshell with cable clamp, olive-drab cadmium-plated aluminum shell, and a 1/3-turn bayonet coupling. The 851 Series is Souriau's MIL-DTL-26482 Series I line — the compact bayonet standard used across industrial, instrumentation and mil-aero equipment, with a series operating range of −40°C to +125°C. The insert face is lettered A through F, so you can confirm pin identity against your equipment before you order. The male end is the mating 6-pin circular connector with six gold pins; it carries no maker stamp.

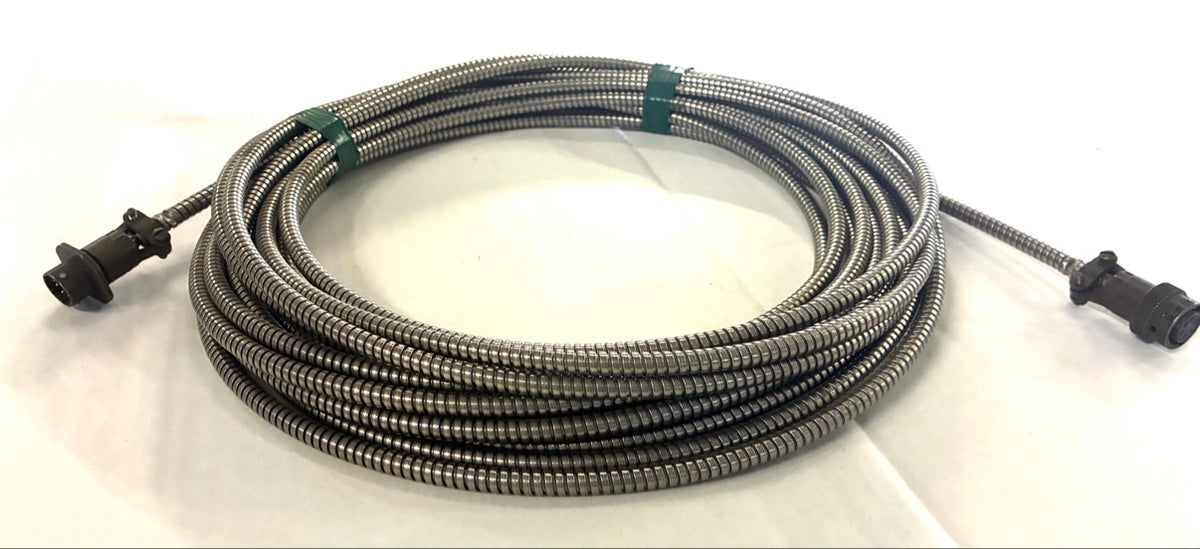

The interlocked metal armor is the point of this cable: it resists crushing, abrasion, cutting and rodent damage that destroy ordinary jacketed cables, while staying flexible enough to coil, route around equipment, and reposition. A braided shield is visible at the female backshell clamp.

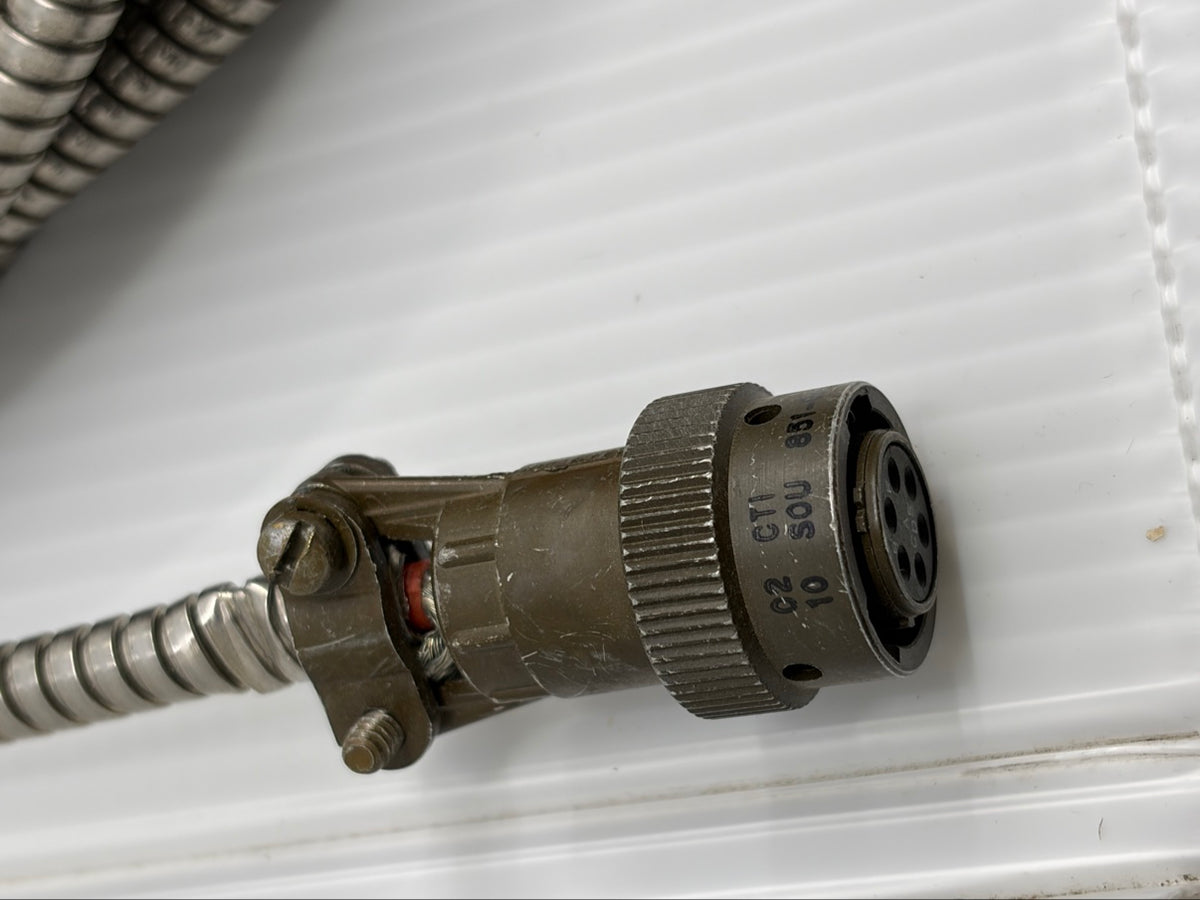

Please verify the 10-6 arrangement, pinout and length against your equipment before ordering — the cable assembly itself carries no brand or application marking, and only the female connector is identified by part number. Light scuffs on the olive-drab connector finish, and the short exposed section of shield braid and red insulation at the female clamp, are shown in the close-up photos.
Specifications
| Female connector | Souriau 851-06AC10-6S50 (stamped, photographed) |
| Connector standard | Souriau 851 Series — MIL-DTL-26482 Series I |
| Shell size / layout | 10 / 10-6 — 6 contacts, size #20, Service Rating I |
| Contacts (female end) | Socket (female), solder type |
| Coupling | 1/3-turn bayonet lock |
| Shell | Aluminum, olive-drab cadmium plating |
| Backshell | Adaptor type with cable clamp, orientation N |
| Connector temp range (851 Series) | −40°C to +125°C |

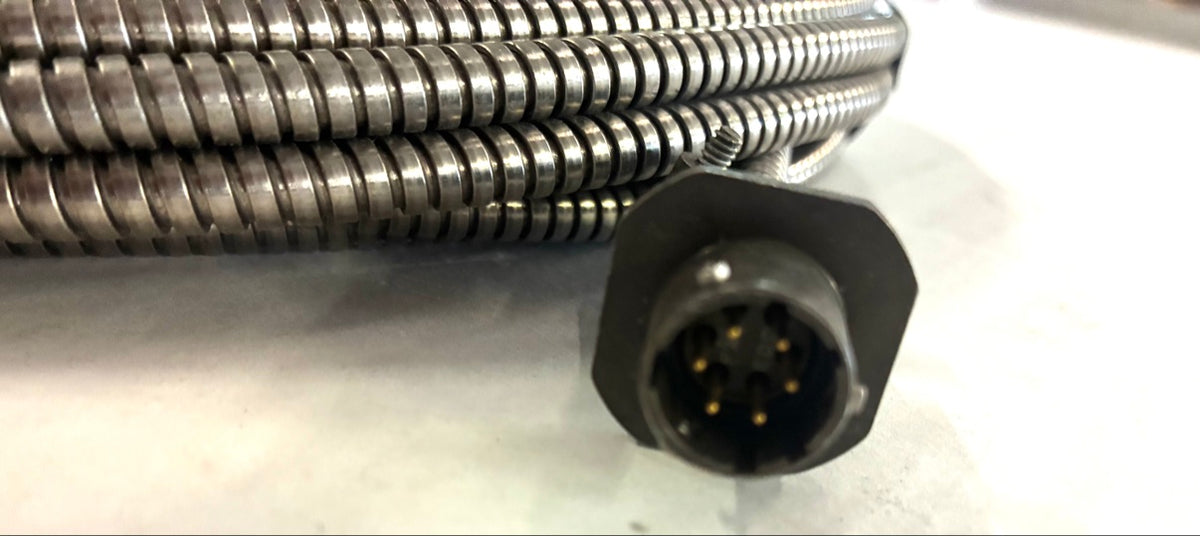

| Male connector | Mating 6-pin circular, 6 gold pins, flange-style shell, cable clamp (no maker stamp) |
| Armor | Interlocked flexible metal conduit, silver finish, full length, braided shield at backshell |

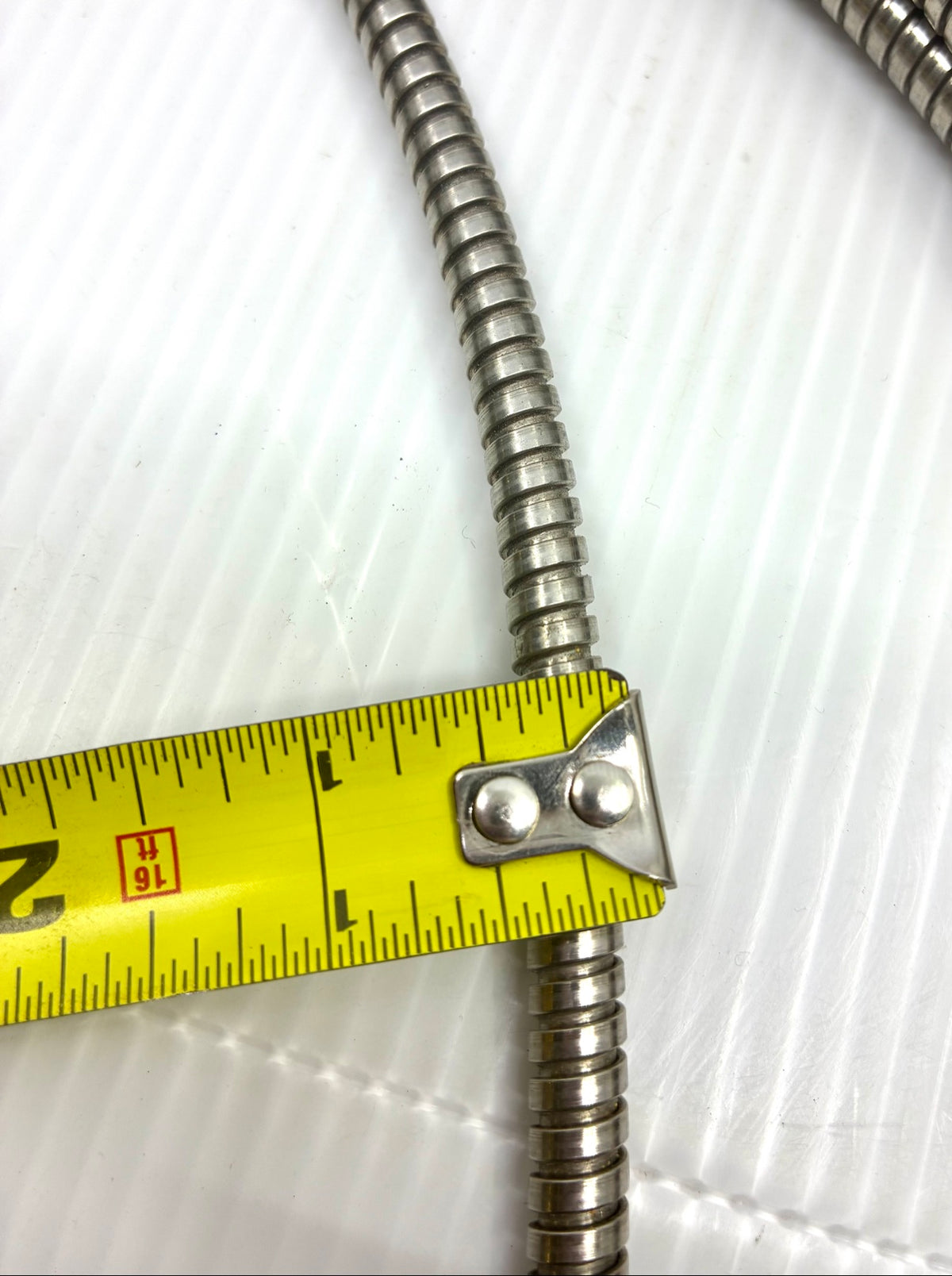

| Armor outside diameter | Approx. 1/4 in (6–7 mm), photo-measured |
| Cable length | 40 ft |
| Weight (per cable) | 3 lb 11 oz |
| Assembly brand / application | Not marked — not stated |
| Condition | New (light finish scuffs on female connector, as photographed) |
| Quantity available | 2 cables (price per cable) |
What's included
- 1 × armored 40 ft extension cable with Souriau 851 female plug (order quantity up to 2 available)
Frequently asked questions
What connector is on the female end?
A Souriau 851-06AC10-6S50 plug — Souriau 851 Series, MIL-DTL-26482 Series I, shell size 10, layout 10-6 (six size-20 socket contacts), bayonet coupling, olive-drab cadmium-plated aluminum. The part number is stamped on the coupling nut and shown in the photos.
How many pins does it have?

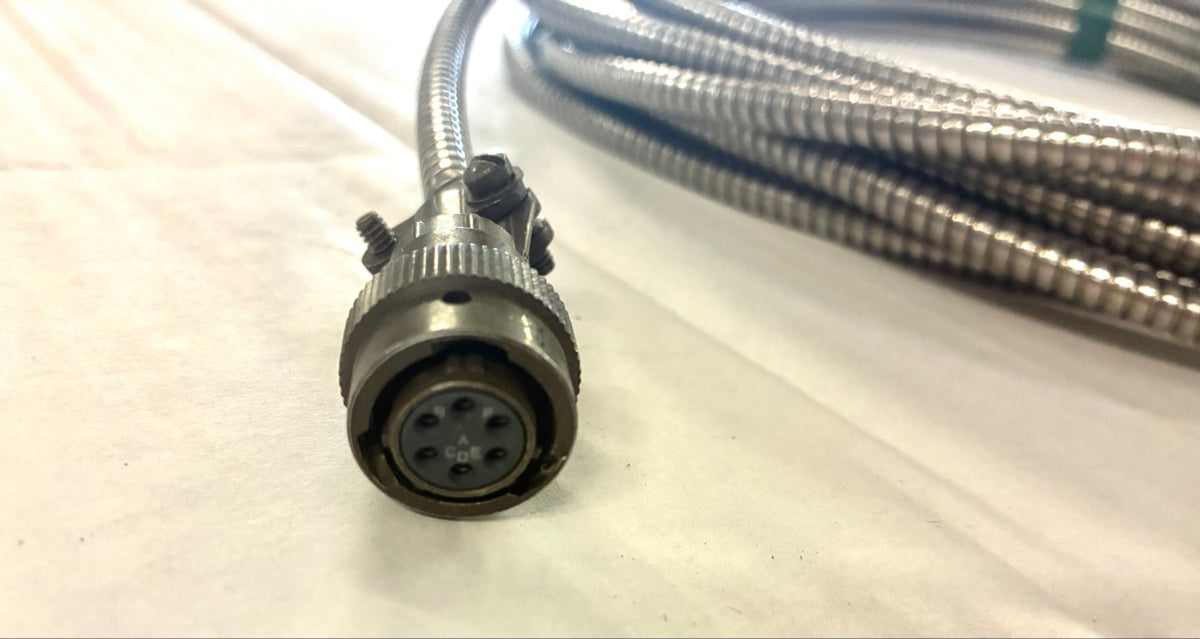

Six on each end — 6 sockets on the Souriau plug (insert lettered A–F) and 6 gold pins on the mating male connector.
Is it threaded or bayonet?
Bayonet. The 851 Series uses a 1/3-turn bayonet lock, not a threaded coupling.
Is it armored the whole way?
Yes. The cable runs inside interlocked flexible metal conduit end to end, not a rubber or PVC jacket, with a braided shield visible at the female backshell.
What equipment does it fit?
Equipment using the standard MIL-DTL-26482 Series I 10-6 arrangement. Match the part number, photos and pin count to your equipment and verify pinout before ordering — the assembly carries no application marking.
How long is it?
40 ft, end to end.
Stock note: New, 2 on hand at Mel Supply, Columbus Warehouse (Columbus, KS) and ready to ship.
