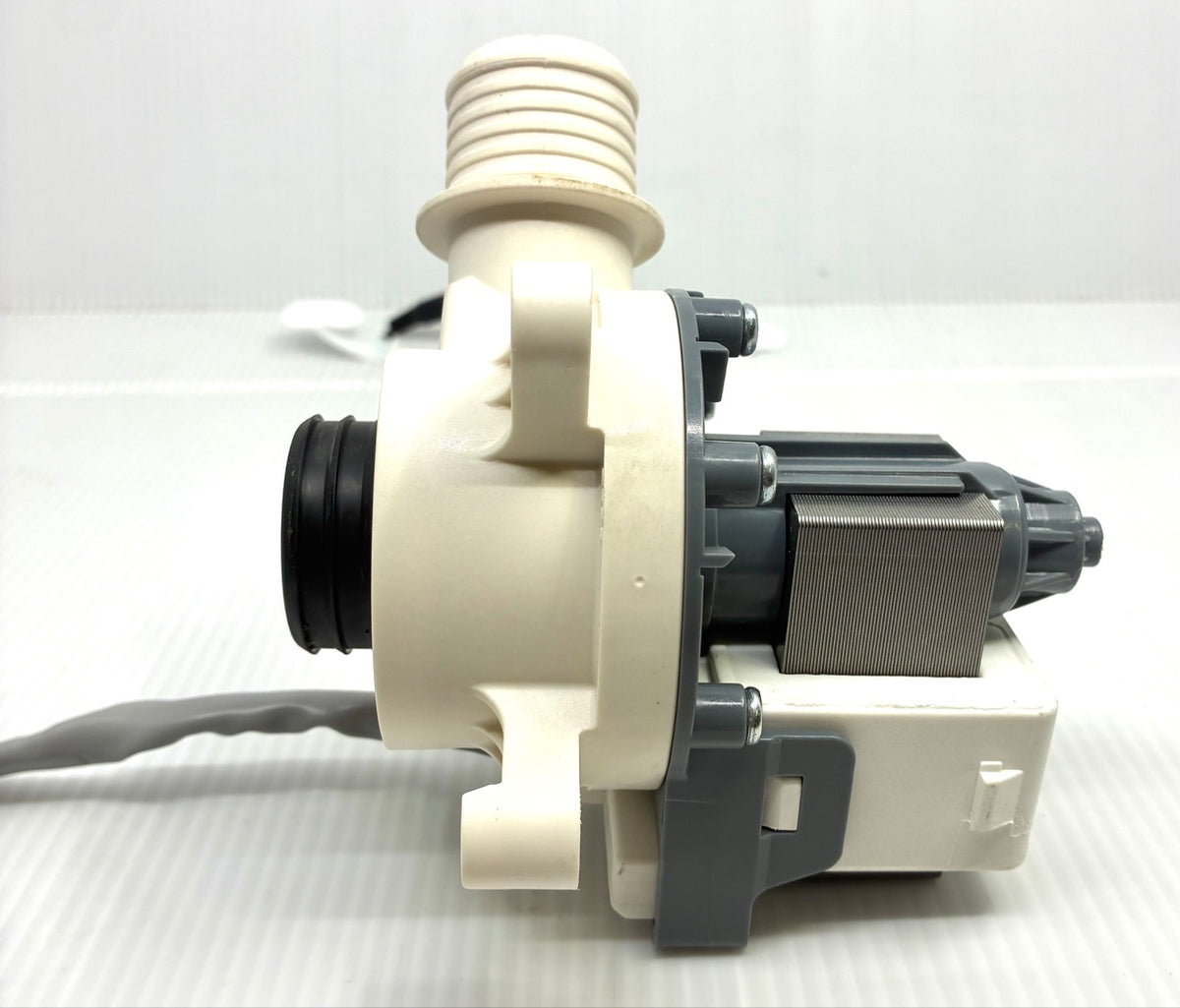

• GE washer drain pump HANYU B30-3A02 side profile showing pump housing, motor core and ribbed outlet port

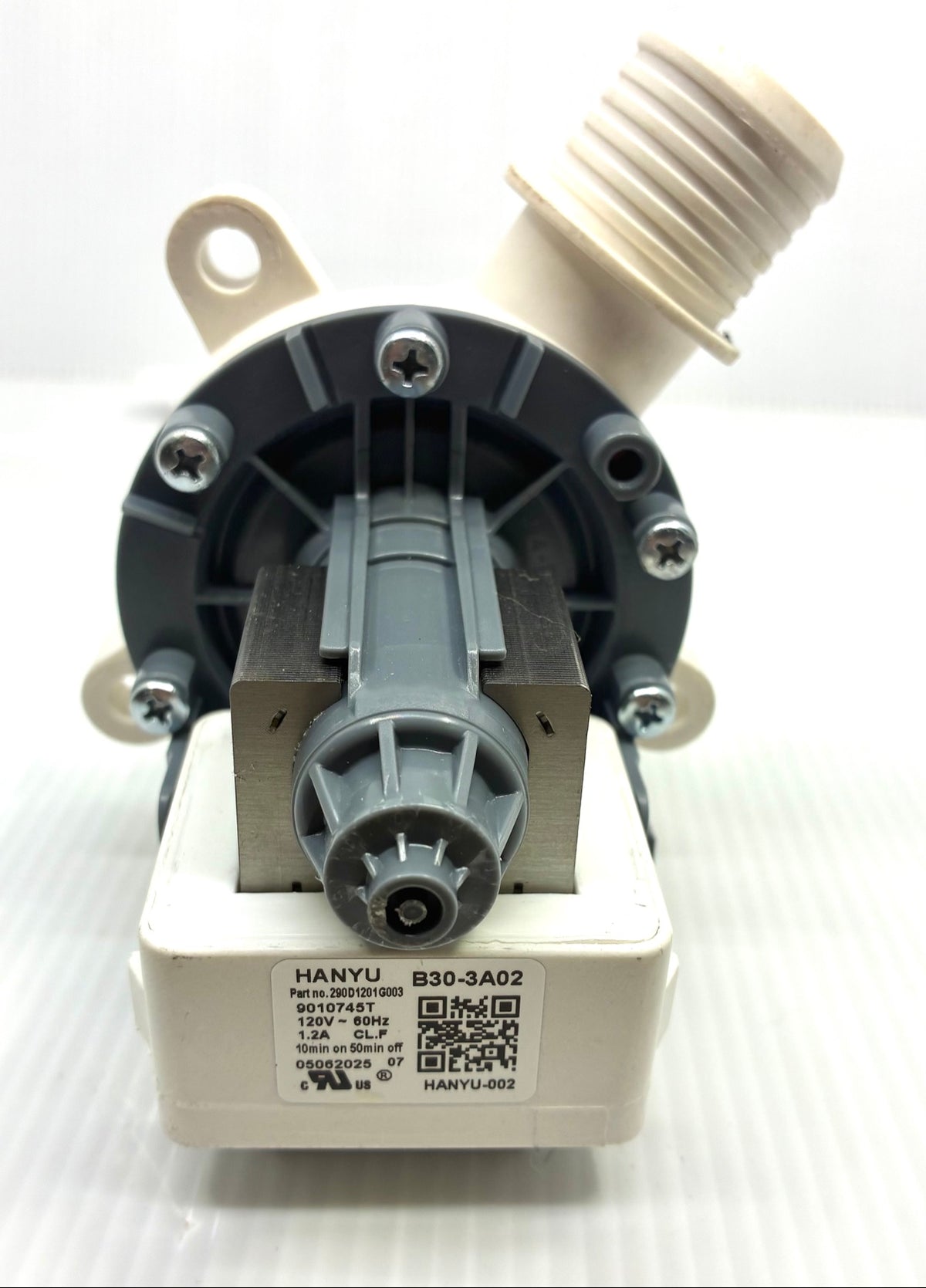

  • HANYU B30-3A02 drain pump label end - part number 290D1201G003, 120V 60Hz 1.2A, cRUus mark, date code 05062025

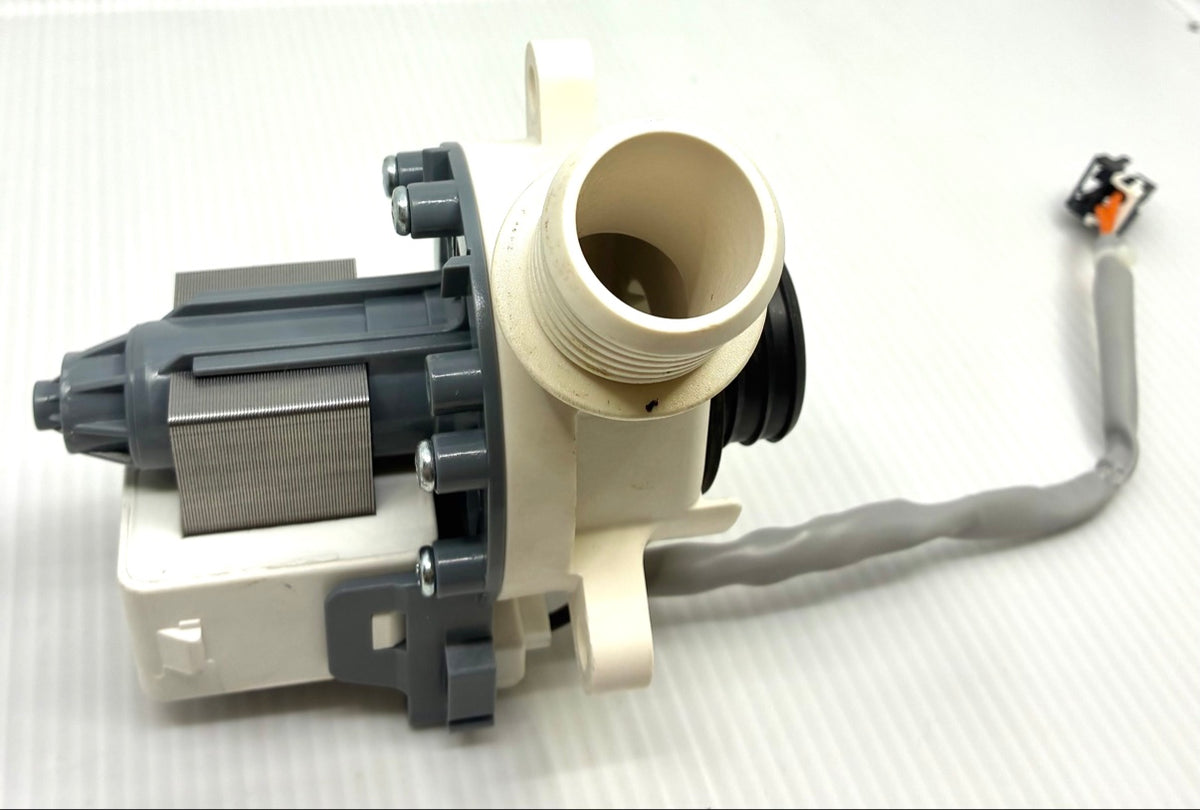

  • Top angle view of GE washer drain pump showing outlet bore, wiring harness lead and 2-pin connector
  • Top view of HANYU drain pump showing outlet port, black rubber inlet grommet and harness lead

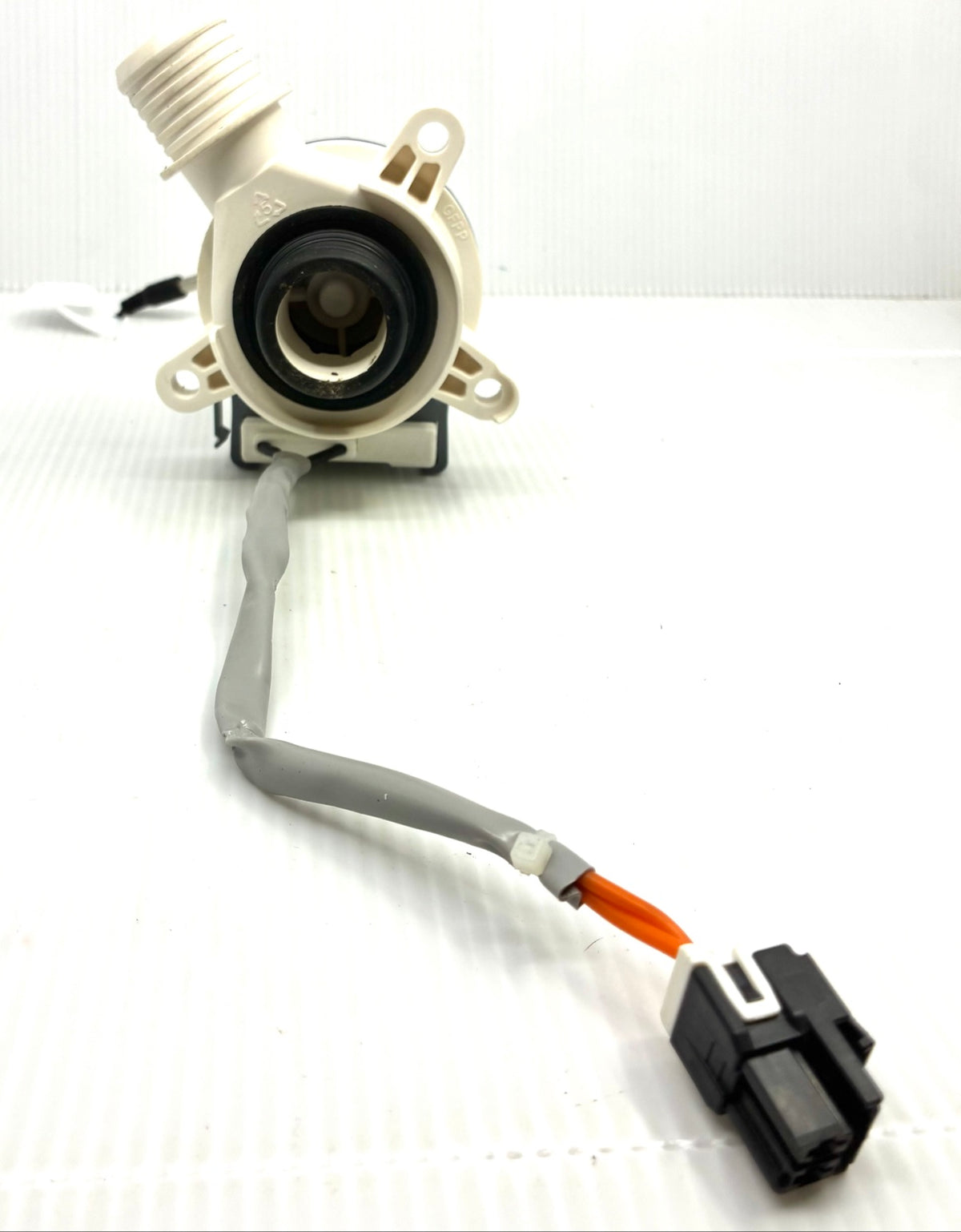

  • Front view of washer drain pump inlet and impeller opening with mounting ears and harness connector in foreground

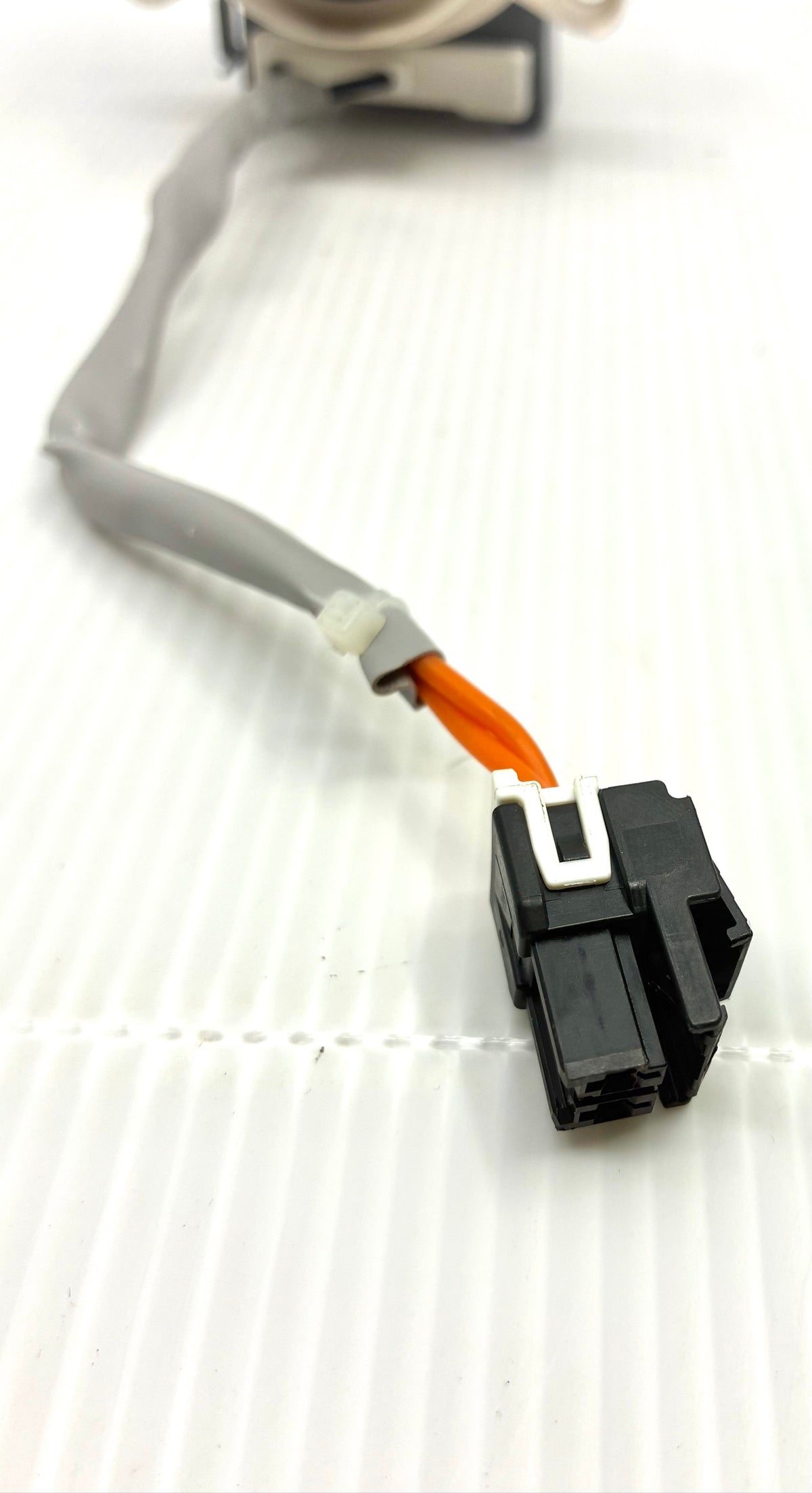

  • Close-up of drain pump 2-pin locking connector with orange wires and grey sheathed harness lead
1 6

HANYU

GE Hotpoint Washer Drain Pump WH23X28418 — HANYU B30-3A02 290D1201G003 120V

GE Hotpoint Washer Drain Pump WH23X28418 — HANYU B30-3A02 290D1201G003 120V

$31.22 USD
$31.22 USD
Sale Sold out
Shipping calculated at checkout.

Washer won't drain or leaves water in the tub? Check the drain pump.

This is the HANYU B30-3A02 drain pump with GE part number 290D1201G003 on the label — the production part behind GE drain pump assembly WH23X28418 for GE and Hotpoint top-load washers. Match the part number on your old pump before ordering.

Features

  • HANYU B30-3A02, 120V ~ 60Hz, 1.2A, insulation Class F
  • Duty cycle 10 min on / 50 min off
  • cRUus mark on label, date code 05062025 — fresh 2025 stock, not a salvaged pull
  • Integrated harness lead with 2-pin locking connector — plugs in, no splicing
  • Ribbed outlet port, black rubber inlet grommet, 3 mounting ears
  • Replaces WH23X24178, WH23X27574, 290D1201G001, 290D1201G002, B40-3A01

Condition note: New. Light shelf dust and scuffs on the housing and a small dark speck inside the outlet on the photographed unit — see photos. The unit you receive will be from the same stock and condition. Label is legible, connector and impeller are clean.

Fitment note: Fits GE and Hotpoint top-load washers that use WH23X28418, commonly including GE GTW220, GTW330, GTW335, GTW460, GTW465, GTW490, GTW500, GTW680, GTW720, GTW725, GTW840 and GTW845 series, and Hotpoint HTW200 and HTW240 series. Always confirm by part number on your old pump, not by model alone.

Specifications

Maker HANYU
Model B30-3A02 (code HANYU-002)
Part number 290D1201G003
GE assembly WH23X28418
Replaces WH23X24178, WH23X27574, 290D1201G001, 290D1201G002, B40-3A01, 4958182, AP6889136, PS12723115
Additional label code 9010745T
Voltage 120V ~ 60Hz
Current 1.2A
Insulation class CL.F (Class F)
Duty cycle 10 min on / 50 min off
Certification on label cRUus
Date code 05062025
Connector Integrated harness lead, black 2-pin locking connector
Condition New

What's included

  • 1 × drain pump assembly (housing, motor and harness lead, as pictured)

Frequently asked questions

How do I know this is the right pump?

Match part number 290D1201G003, model B30-3A02, or GE assembly WH23X28418 on your old pump's label. Model lists are a starting point only — the part number controls.

Is this new or used?

New, date code 05062025. Not a used pull. Light shelf dust and scuffs are shown in the photos.

Is installation difficult?

It is a plug-in part with an integrated harness, but unplug the washer and turn off the water supply before servicing. Have a qualified technician install it if you are not comfortable with appliance repair.

Stock note: New, 12 on hand at Mel Supply, Columbus Warehouse (Columbus, KS) and ready to ship.
