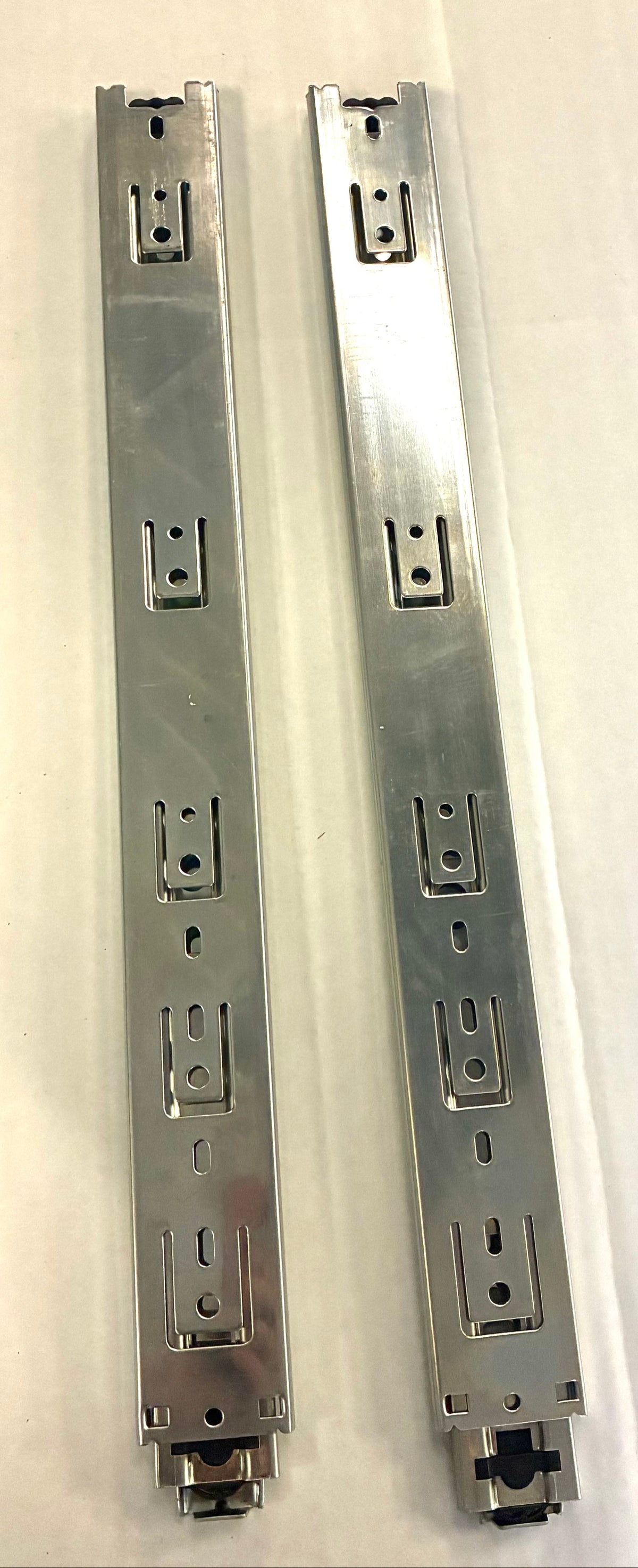

• Fulterer FR 5000 full extension ball bearing drawer slide pair, cabinet profile with screw hole access windows, zinc finish

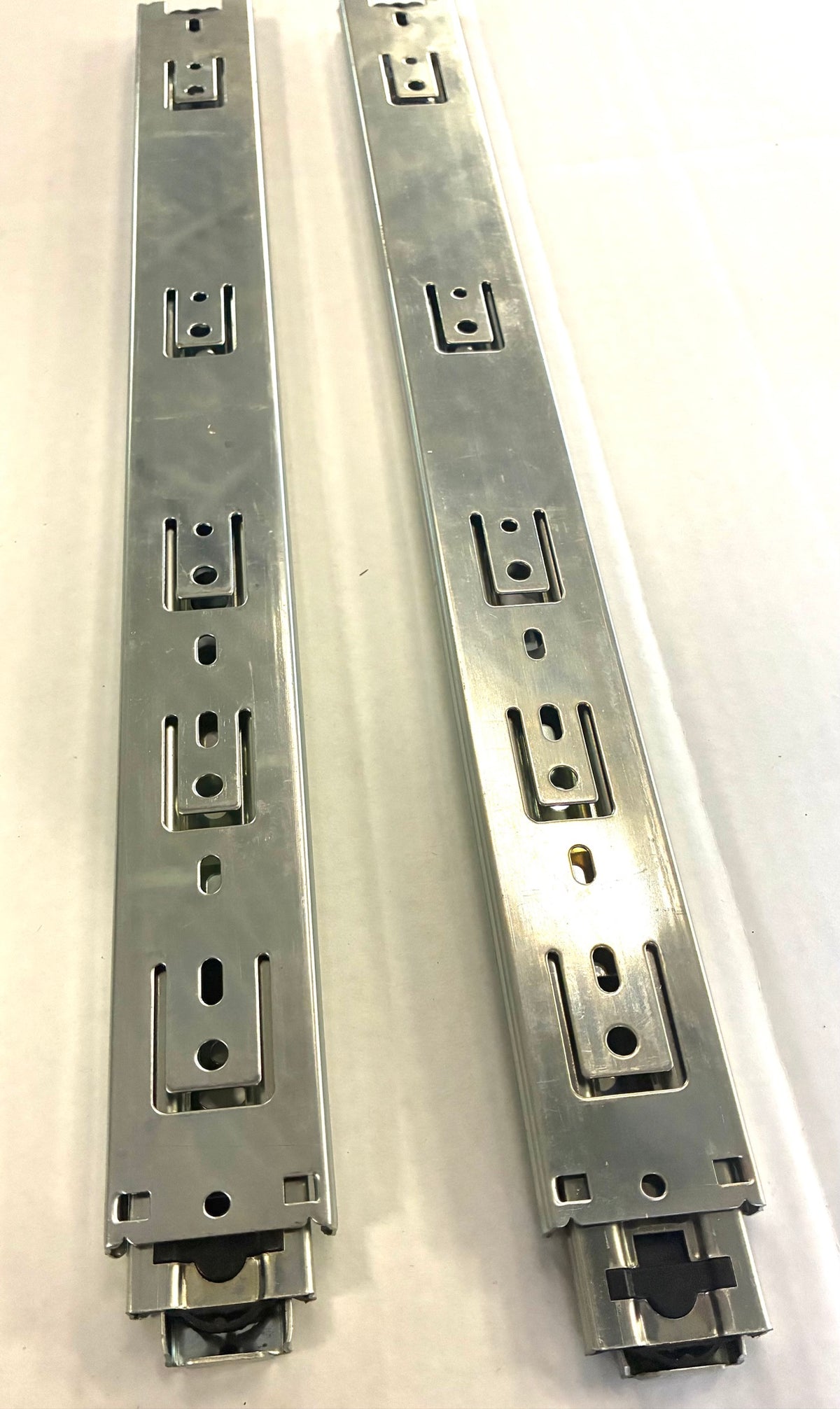

  • Fulterer FR 5000 drawer slides angled view showing screw hole access windows and rear hold-close detent

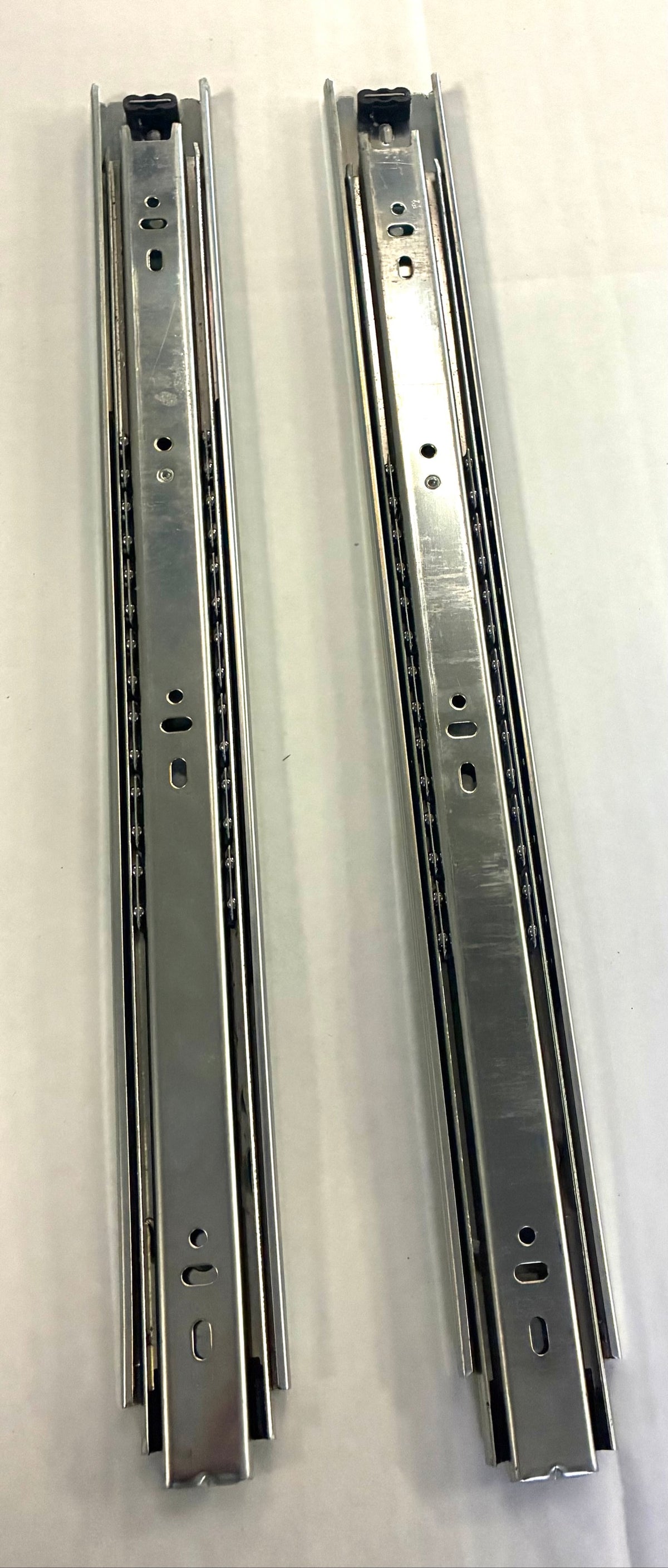

  • Fulterer FR 5000 drawer slide drawer profile showing steel ball bearing retainers and black disconnect trigger

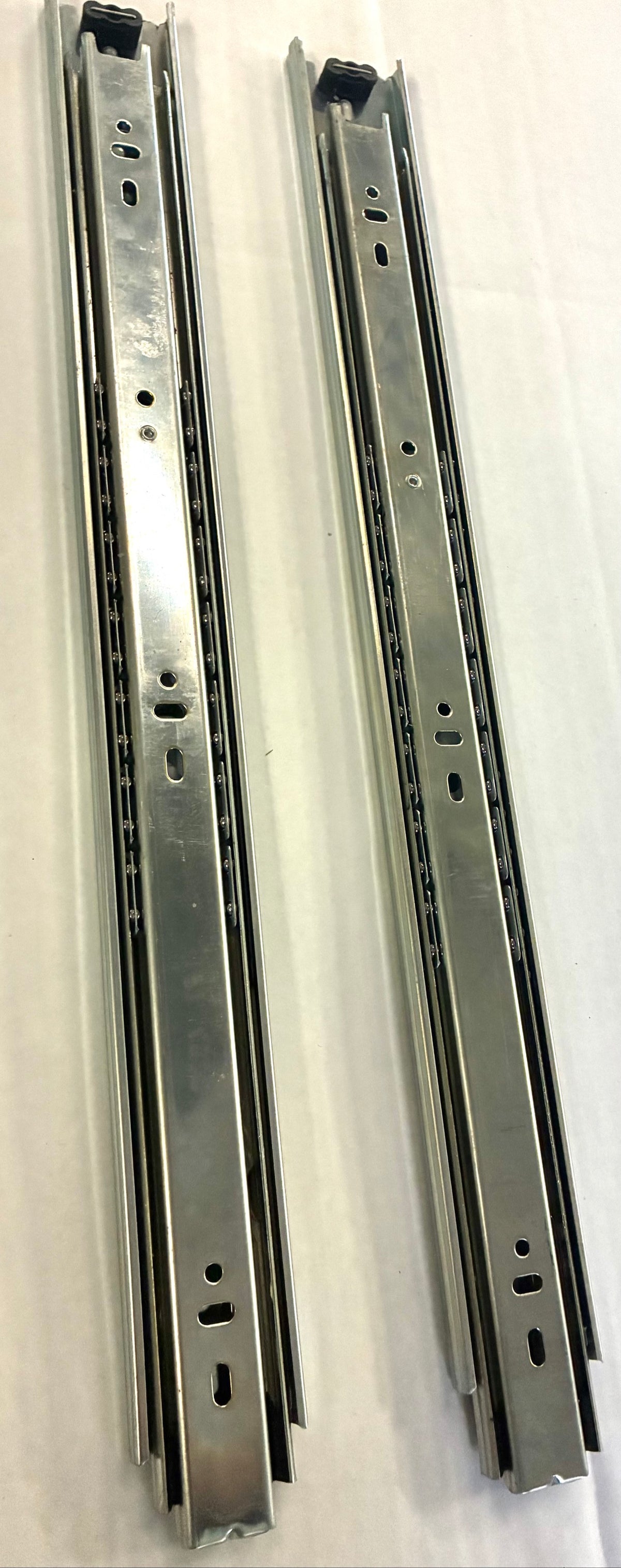

  • Fulterer FR 5000 ball bearing drawer slides angled side view with disconnect trigger and mounting slots

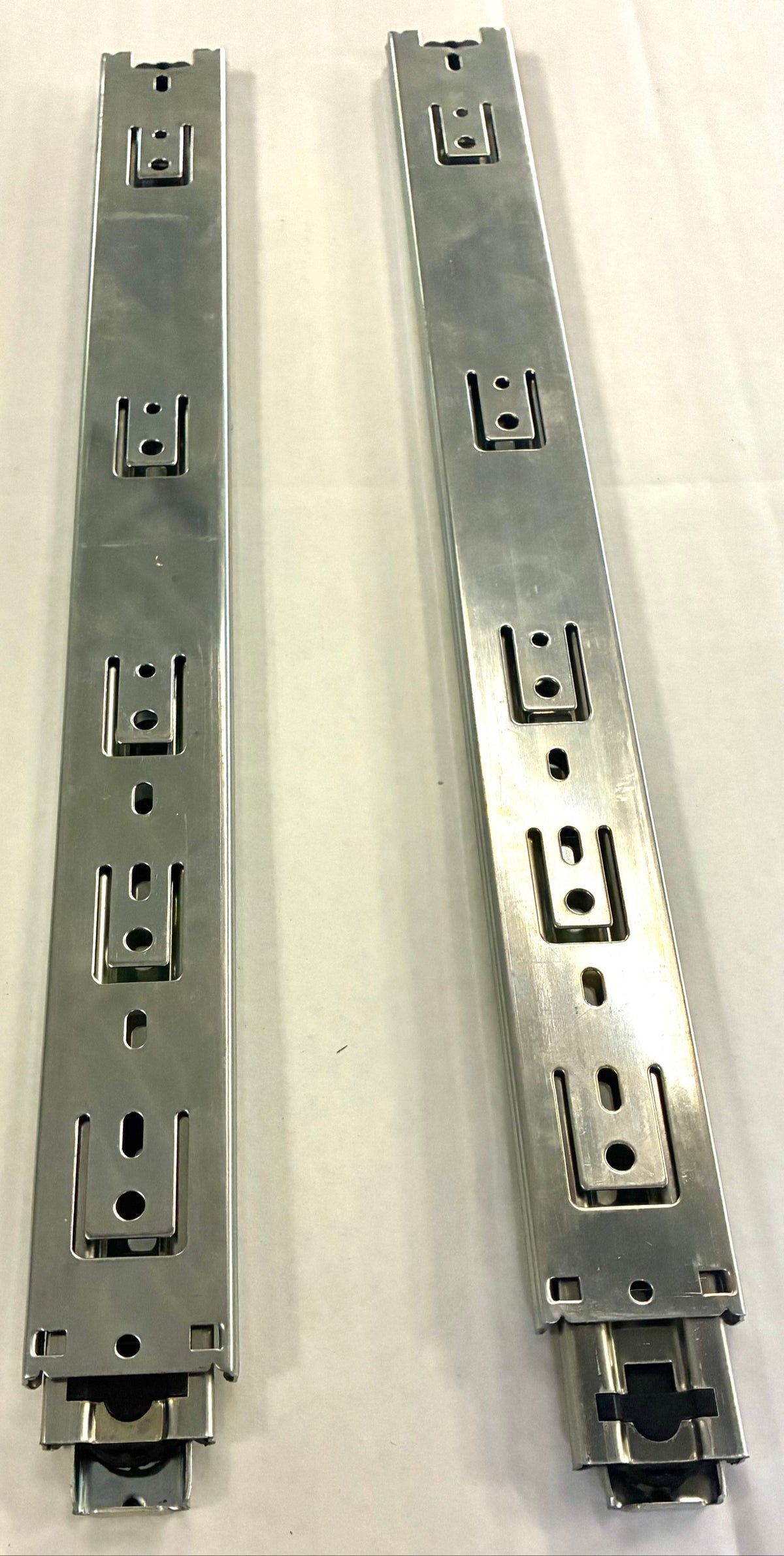

  • Fulterer FR 5000 drawer slides full mounting hole pattern, System 32 compatible

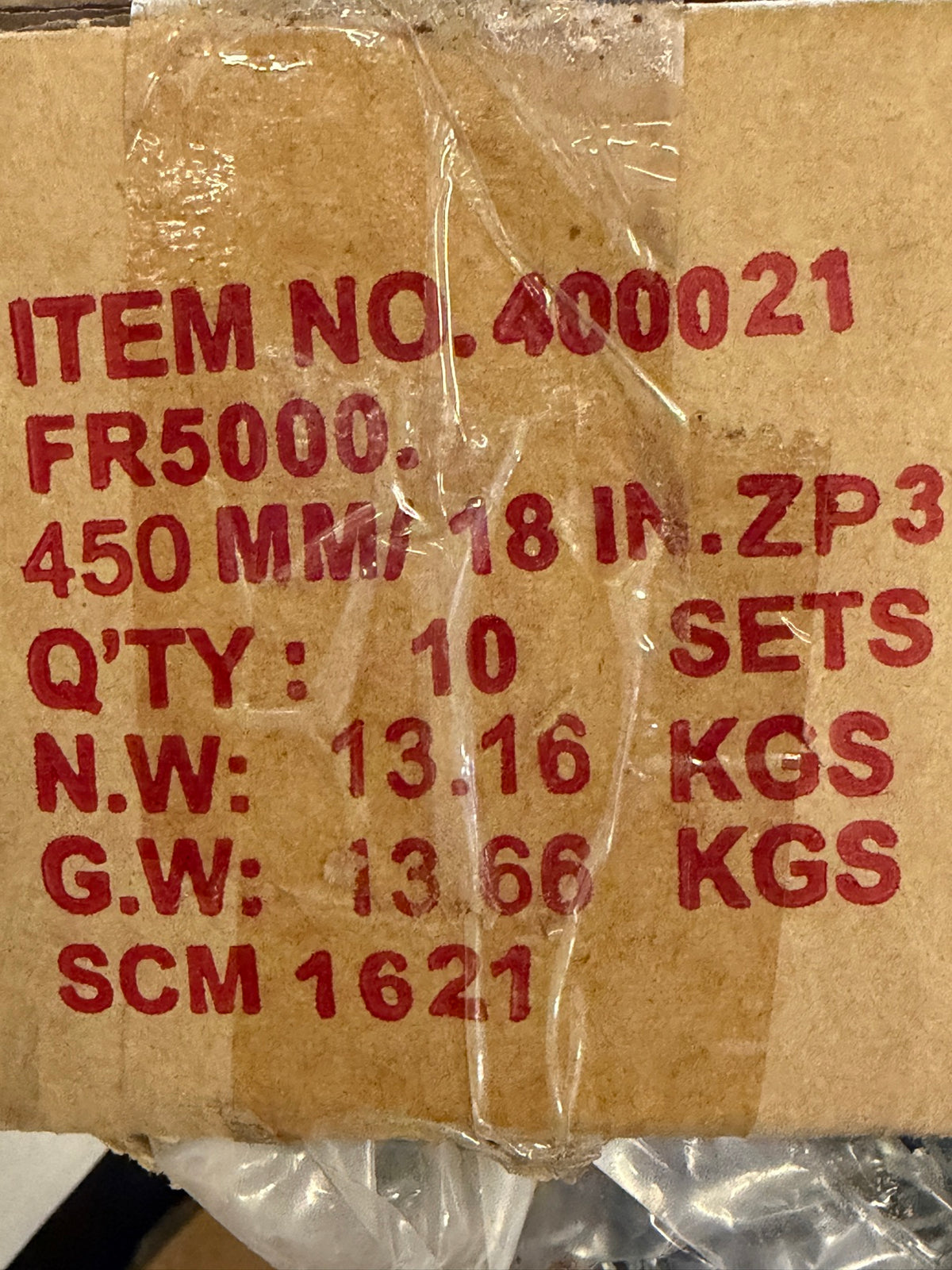

  • Fulterer factory carton label - Item No. 400021, FR5000, 450 mm / 18 in, quantity 10 sets, net weight 13.16 kg

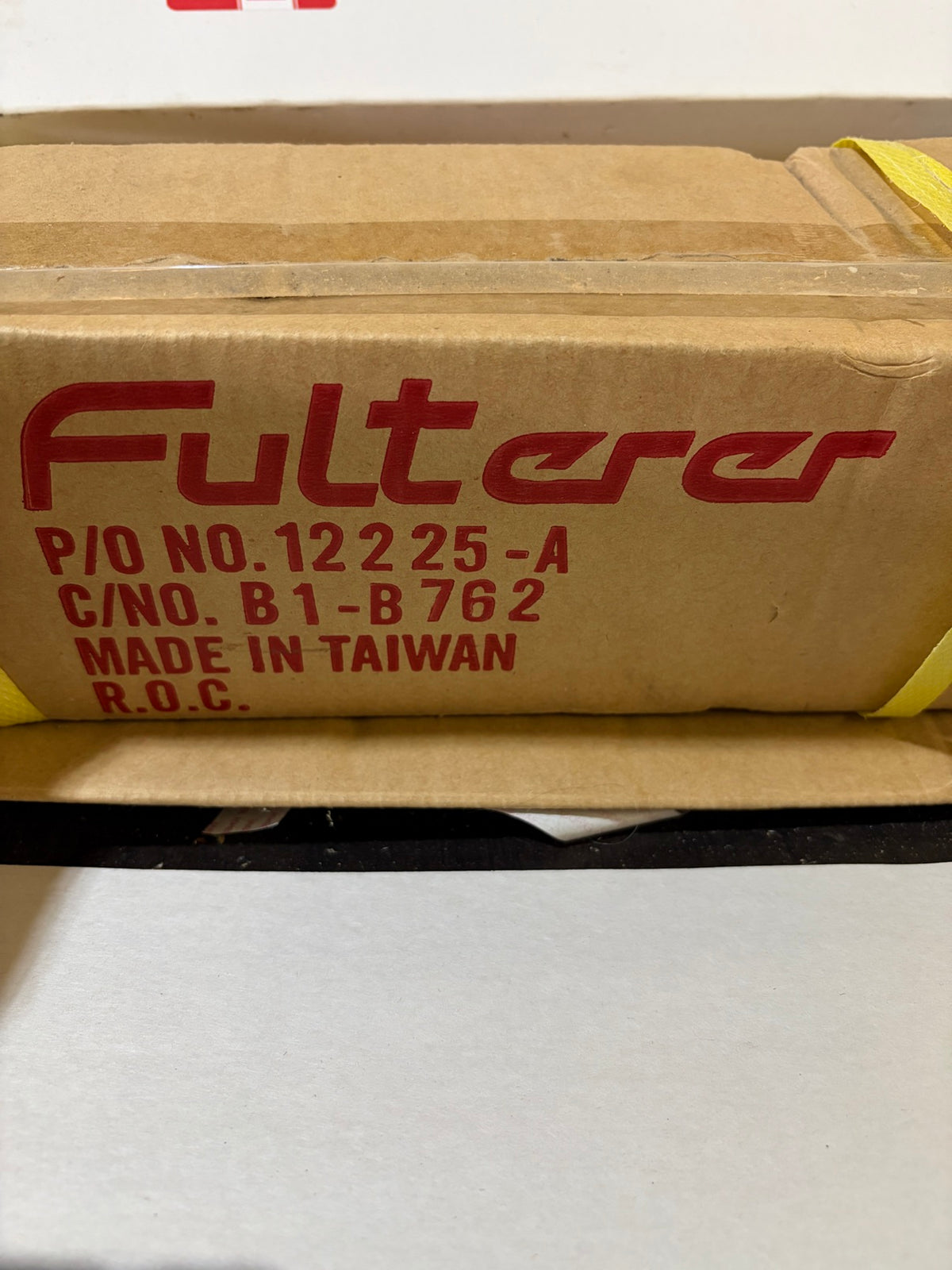

  • Fulterer factory carton - Fulterer brand, P/O No. 12225-A, Made in Taiwan R.O.C.
1 7

Fulterer

Fulterer FR 5000 Full-Extension Ball-Bearing Drawer Slides — 18-Inch, 100 lb, Side Mount (1 Pair)

Fulterer FR 5000 Full-Extension Ball-Bearing Drawer Slides — 18-Inch, 100 lb, Side Mount (1 Pair)

$17.83 USD
$24.95 USD $17.83 USD
Sale Sold out
Shipping calculated at checkout.

Full access to the back of the drawer, from a real cabinet-shop slide.

This is a genuine Fulterer FR 5000 drawer slide pair (Item No. 400021) — 3-member, full-extension, steel ball-bearing, made in Taiwan. One pair fits one drawer. The finger-release disconnect lets you lift the drawer out for cleaning or access, and the hold-close detent keeps it shut the rest of the time.

Features

  • Genuine Fulterer FR 5000, Item No. 400021, made in Taiwan — factory carton pictured
  • Full extension — 450 mm travel on an 18 in / 450 mm slide
  • Precision steel ball bearings for smooth travel
  • 100 lb dynamic load class per pair (Fulterer specification for the FR 5000)
  • Side mount, non-handed pair — 46 mm profile, approx. 1/2 in side clearance per slide
  • Finger-release disconnect trigger + hold-close detent
  • Screw-hole access windows in the cabinet profile and System 32-compatible hole pattern

Specifications

Brand Fulterer
Model FR 5000
Item No. 400021
Length (closed) 18 in / 450 mm
Travel 450 mm — full extension
Load class 100 lb per pair, dynamic
Profile 46 mm high, approx. 12.7 mm (1/2 in) thick per slide
Material / finish Cold-rolled steel, zinc plated (carton code ZP3)
Bearings Steel ball bearing
Mounting Side mount, non-handed
Weight per pair 1.316 kg (2 lb 14 oz) net, per factory carton
Origin Taiwan
Condition New

What's included

  • 1 pair of Fulterer FR 5000 drawer slides (2 slides — one drawer). Mounting screws and rear mounting brackets are NOT included — use fasteners suited to your cabinet and drawer material.

Please note: This is not a soft-close slide. It has a hold-close detent, not a soft-close damper. Measure your existing slides / cabinet depth before ordering — slide length should match the drawer / cabinet depth.

Condition note: New, never installed. Light shelf marks and fingerprints on the plating are possible from handling — see photos. The pair pictured is from the same stock you will receive.

Frequently asked questions

How many drawers does one unit do?

One. Each unit is a matched pair of 2 slides.

What clearance do I need?

Allow approx. 1/2 in (12.7 mm) between the drawer box and the cabinet on each side.

Are screws included?

No — slides only, so you can use fasteners matched to your drawer and cabinet material.

Is it soft-close?

No. It has a hold-close detent, not a soft-close damper.

How do I pick the length?

Match the closed length of your current slides (18 in / 450 mm here), or measure the cabinet depth front to back.

Stock note: New, 6 pairs on hand at Mel Supply, Columbus Warehouse (Columbus, KS) and ready to ship.
