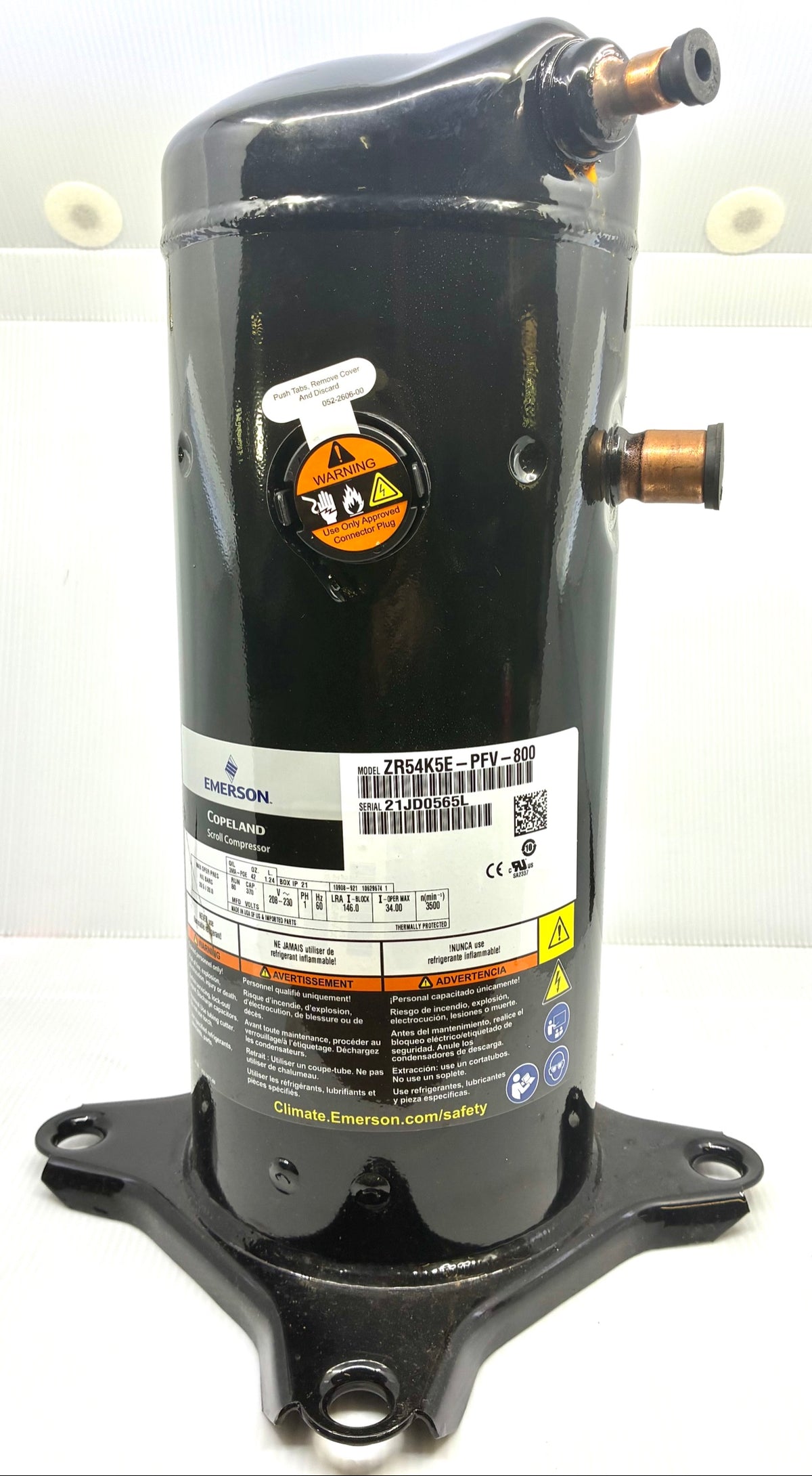

• Emerson Copeland ZR54K5E-PFV-800 scroll compressor front view with nameplate, serial 21JD0565L, capped suction and discharge stubs

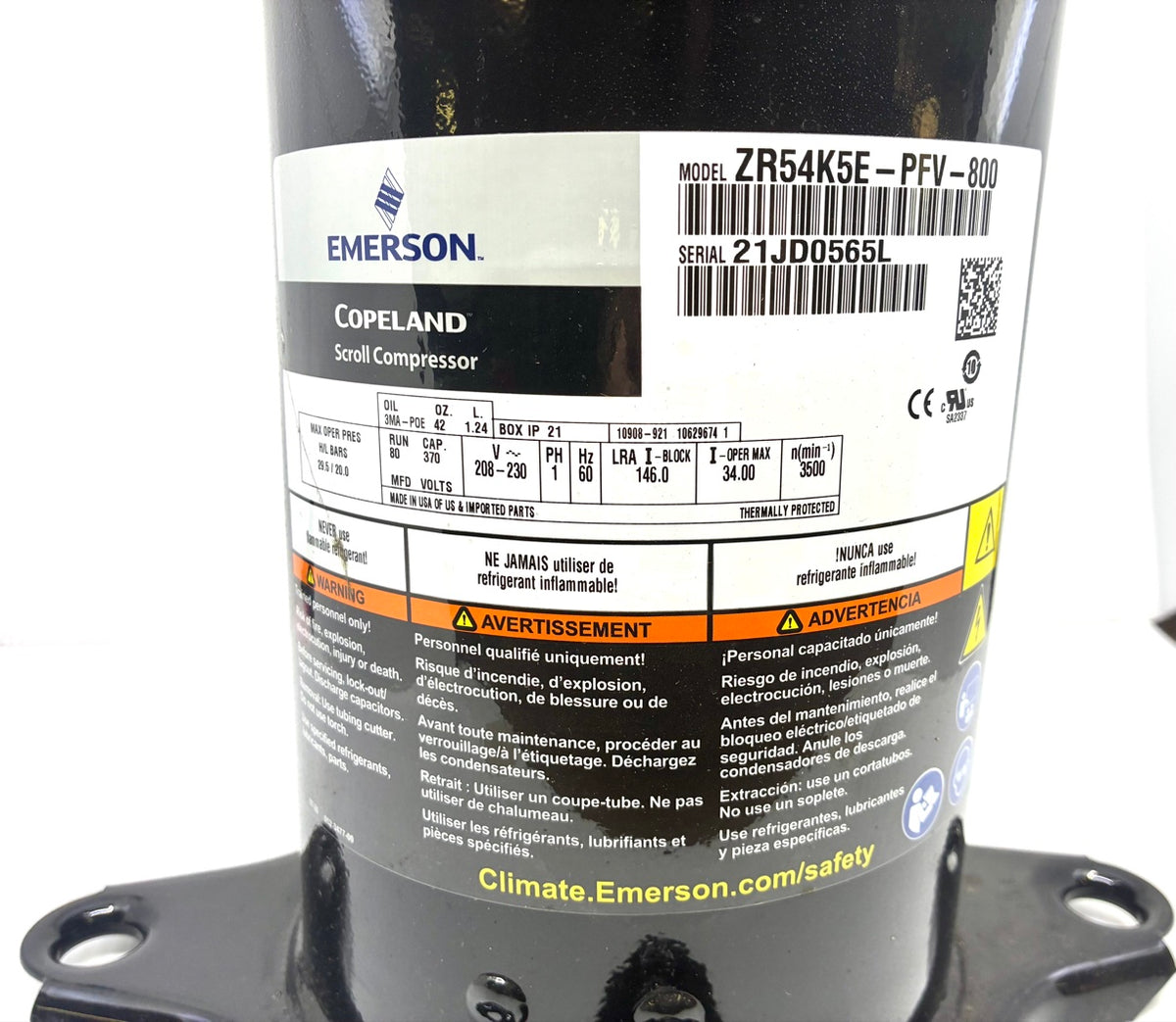

  • Close-up of Copeland ZR54K5E-PFV-800 nameplate showing model, serial 21JD0565L, 208-230V 1 phase 60Hz, LRA 146, POE oil 42 oz

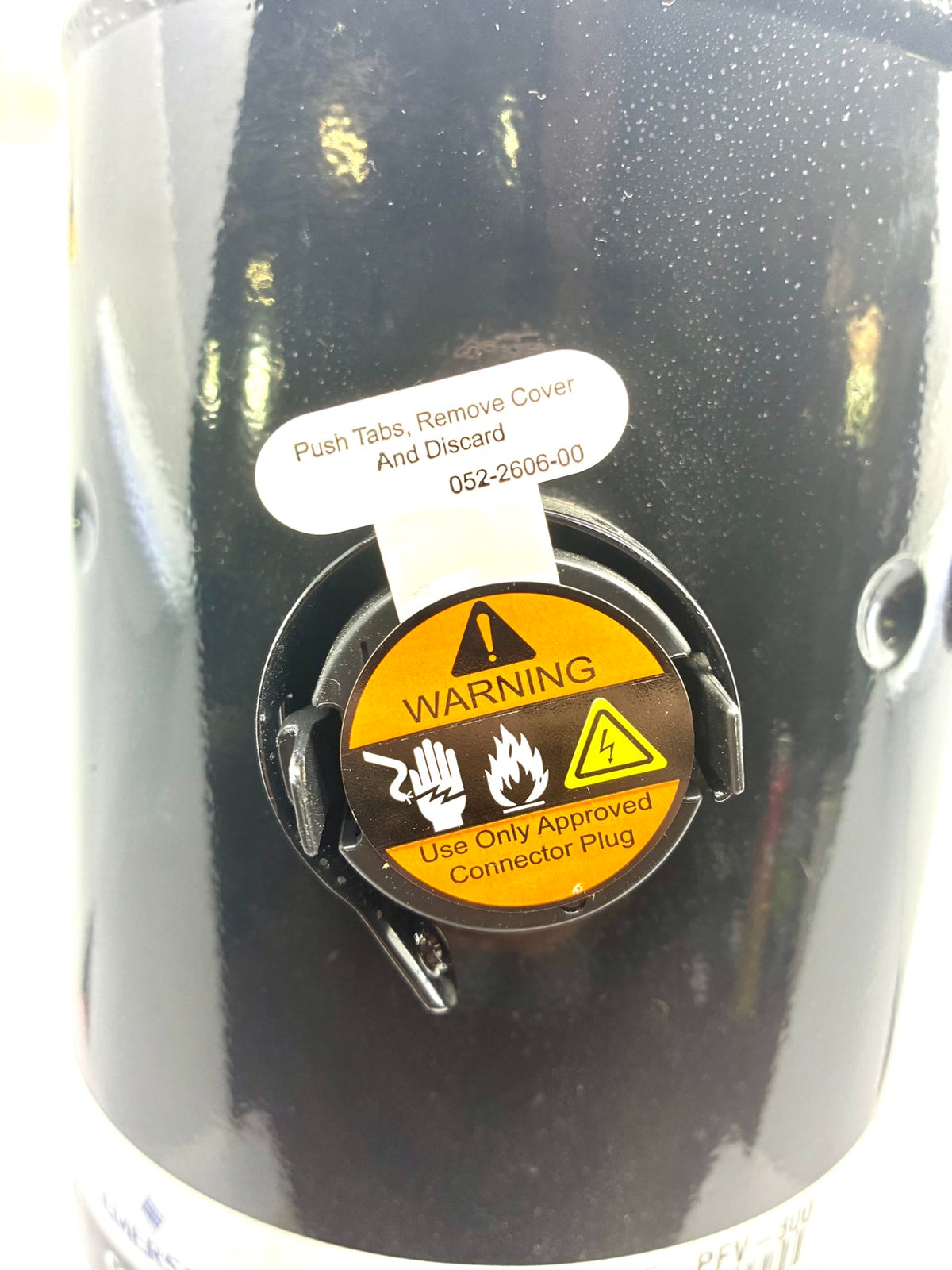

  • Close-up of Copeland scroll compressor electrical terminal cover with factory warning label and push tab tag still in place

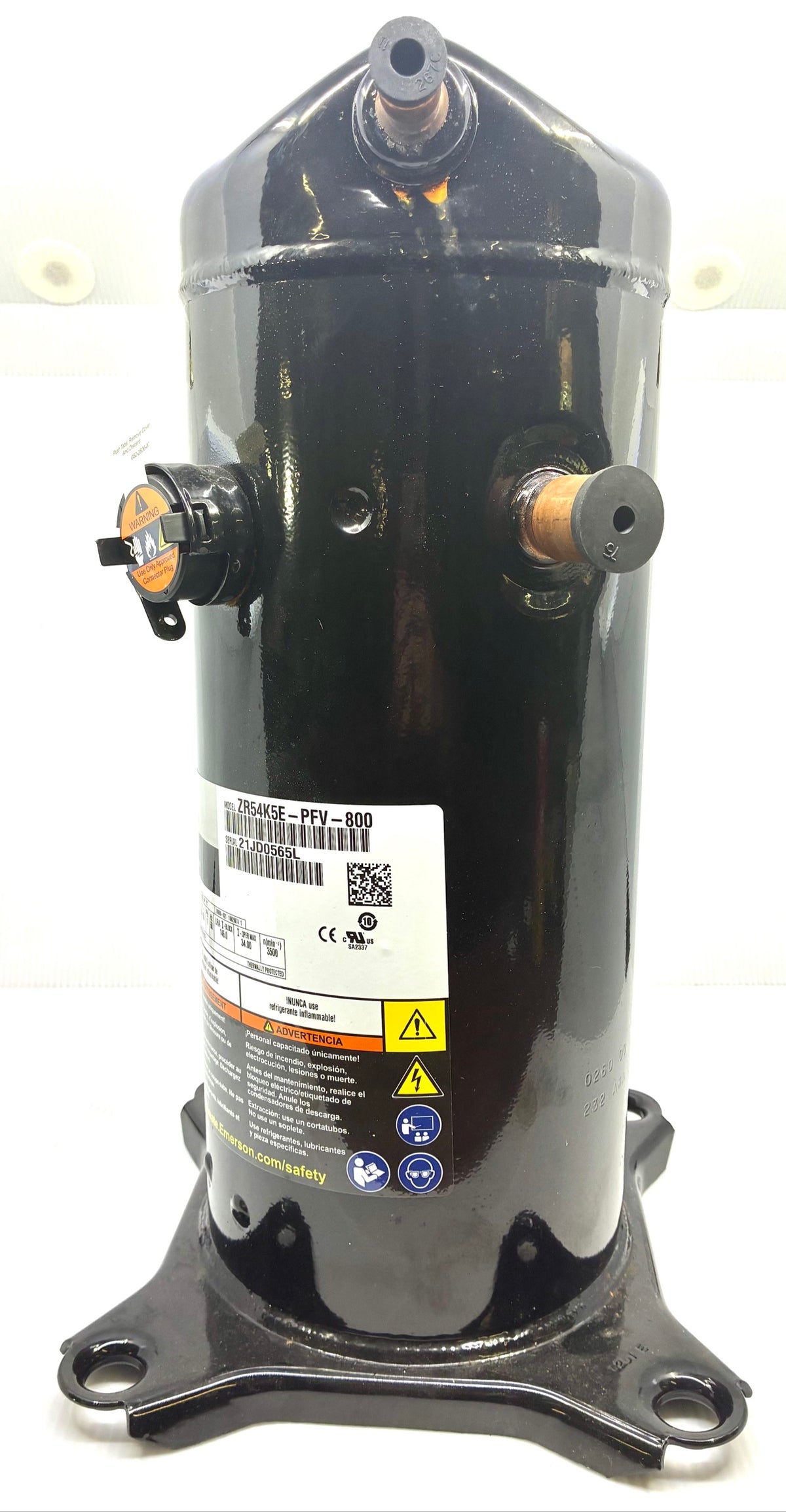

  • Side view of Copeland ZR54K5E-PFV-800 compressor showing discharge stub with cap and terminal cover

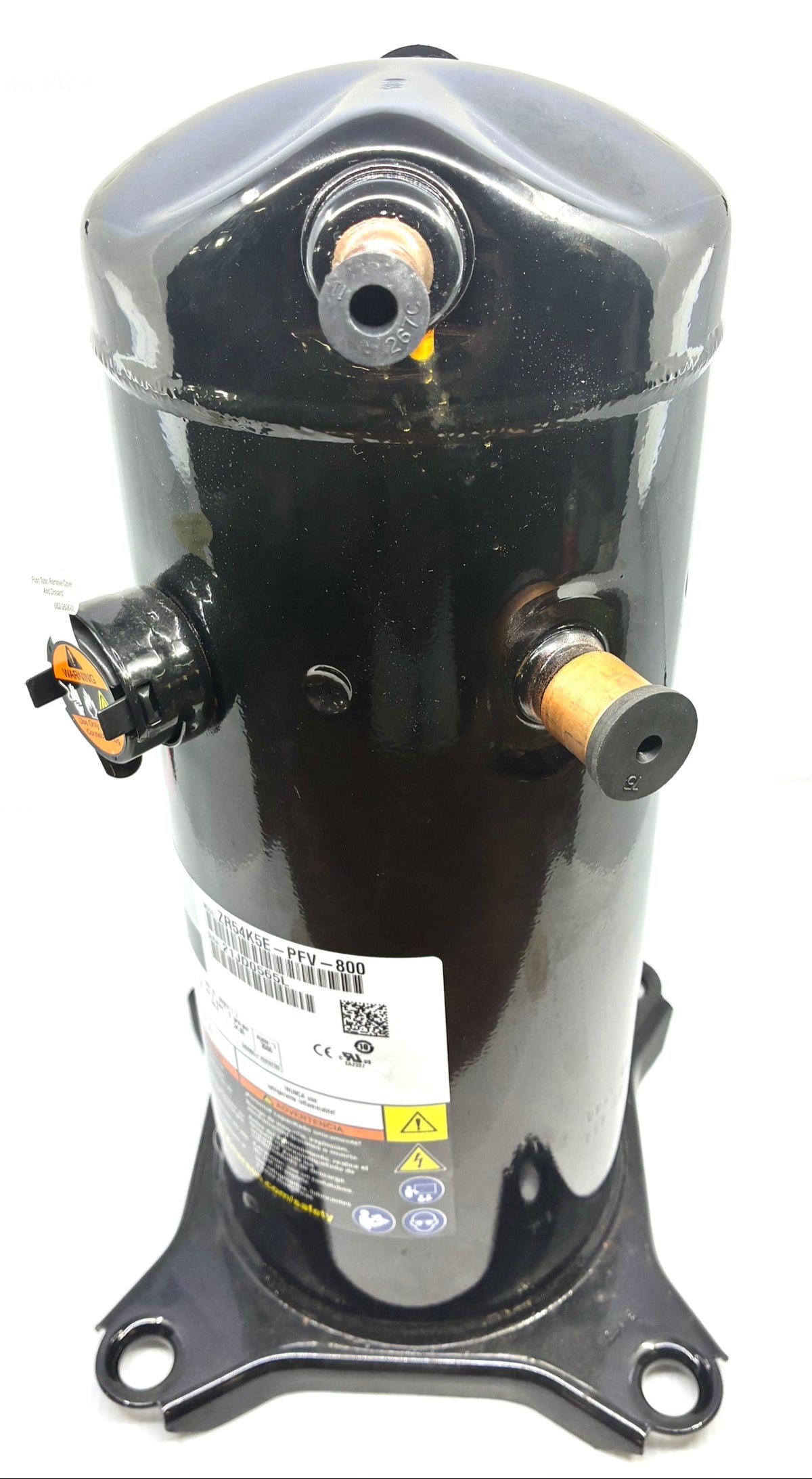

  • Top view of Copeland ZR54K5E-PFV-800 compressor showing suction stub with cap

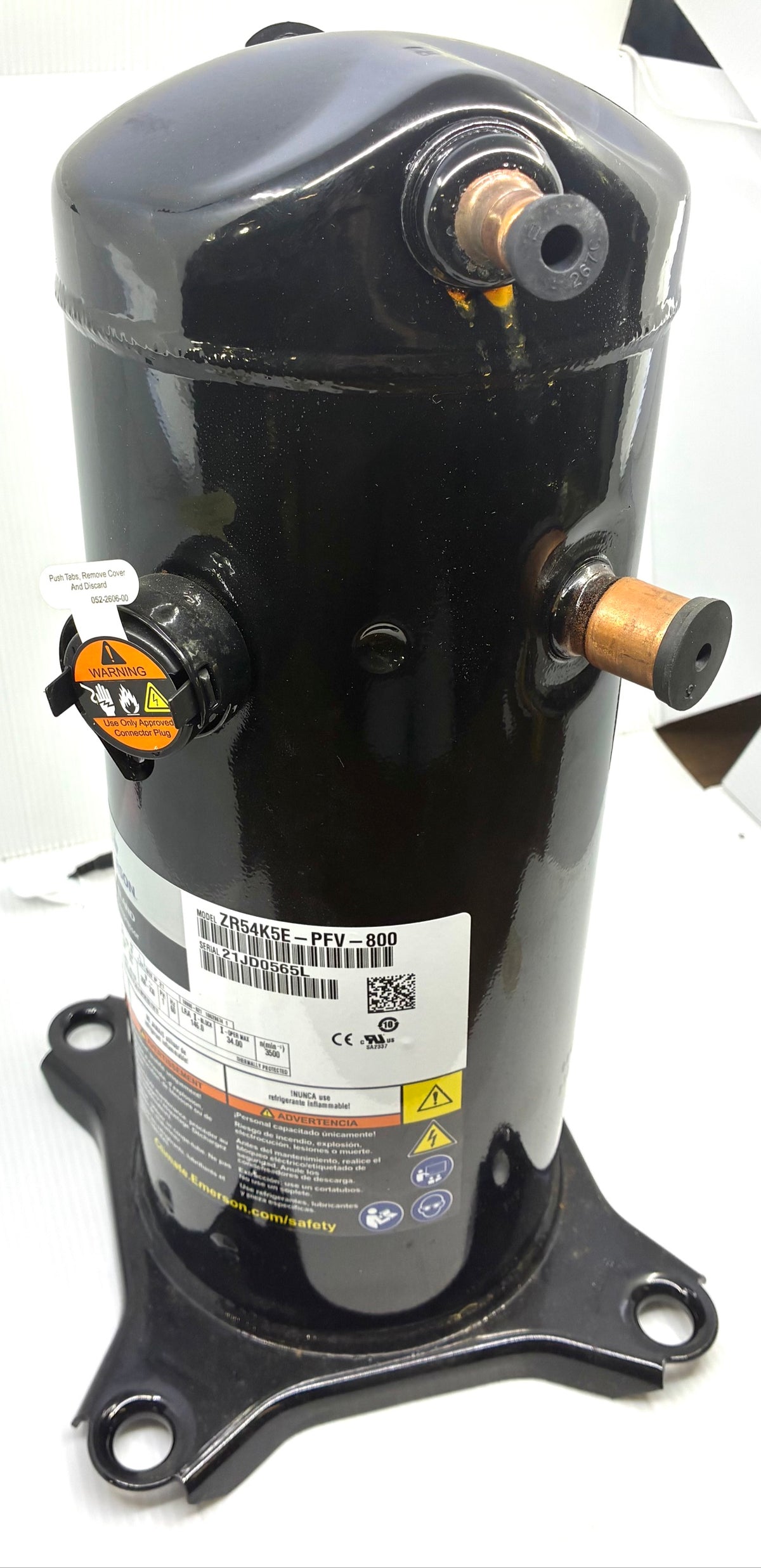

  • Angled front view of Copeland ZR54K5E-PFV-800 scroll compressor with nameplate and mounting base

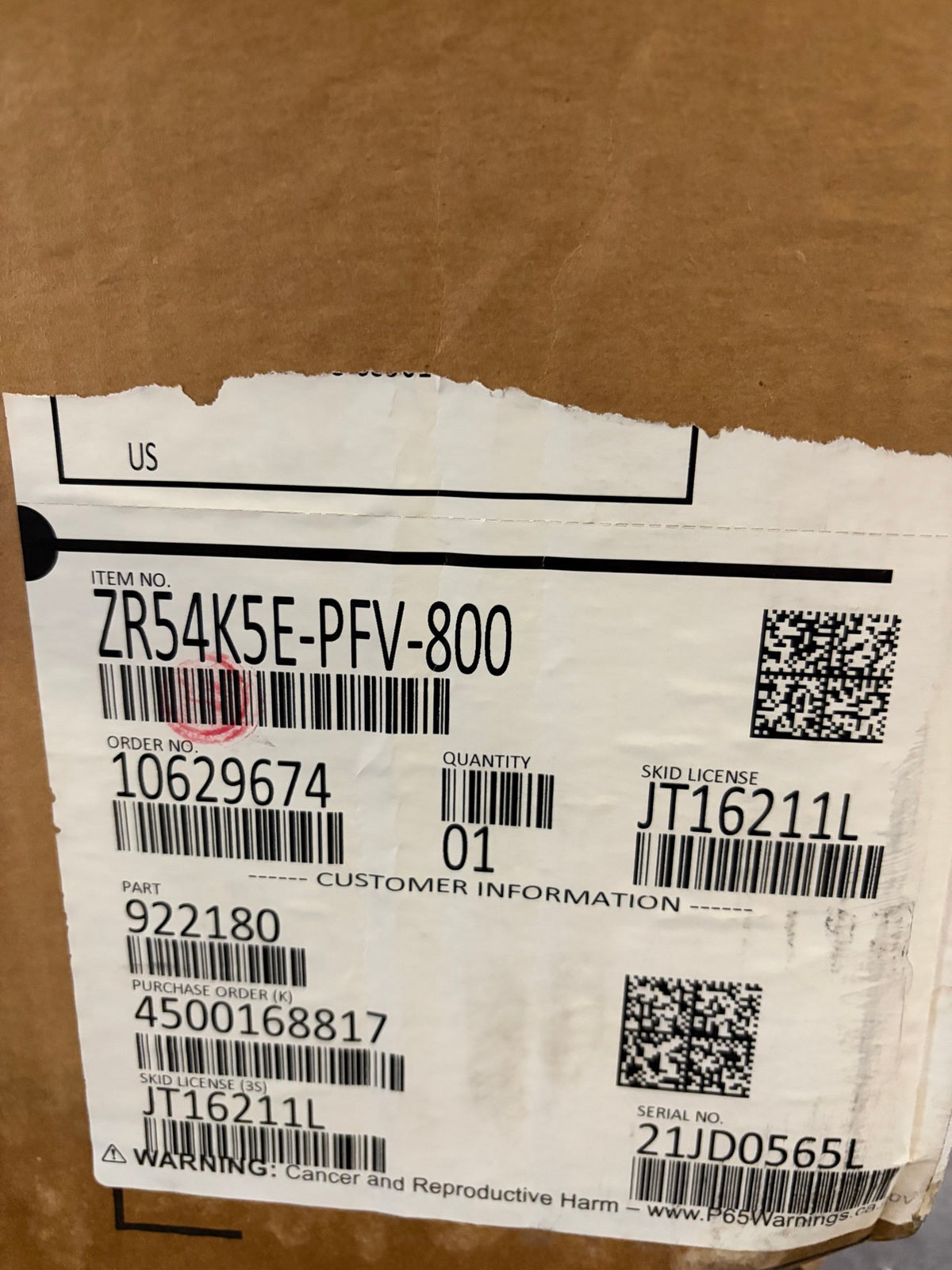

  • Original carton label for Copeland ZR54K5E-PFV-800, quantity 01, serial 21JD0565L matching the compressor nameplate; carton is damaged
1 7

Emerson Copeland

Emerson Copeland ZR54K5E-PFV-800 Scroll Compressor — 4.5 Ton, 53,500 BTU, R-22 / R-407C, 208-230V Single Phase, New

Emerson Copeland ZR54K5E-PFV-800 Scroll Compressor — 4.5 Ton, 53,500 BTU, R-22 / R-407C, 208-230V Single Phase, New

$999.97 USD
$999.97 USD
Sale Sold out
Shipping calculated at checkout.

New Emerson Copeland ZR54K5E-PFV-800 hermetic scroll compressor for air conditioning systems running R-22 or R-407C.

This is the 4.5-ton, 53,500 BTU class Copeland Scroll — the factory replacement techs spec when a 208–230V single-phase R-22 system needs a compressor and a conversion is not in the plan.

The unit pictured is the unit you receive. Nameplate serial 21JD0565L is shown clearly in the photos, and the original carton label carries the same serial number. Suction and discharge stubs are capped, the electrical terminal cover and its factory tag are still in place, and the compressor is factory-charged with 42 oz of POE oil. Professional installation by a qualified HVAC technician is required.

Ships in its original carton, and that carton is damaged (torn top / label area, see the carton photo). The compressor itself is new and unused — the damage is to the box only.

Features

  • Genuine Emerson Copeland Scroll — model ZR54K5E-PFV-800
  • 4.5 Ton nominal, 53,500 BTU/hr R-22 capacity rating
  • Runs R-22 and R-407C — POE oil factory fill (required for R-407C)
  • 208–230V, single phase, 60 Hz — standard residential / light commercial service voltage
  • Hermetic scroll design — thermally protected, 3,500 RPM
  • 7/8 in suction stub, 1/2 in discharge stub
  • 7.5 × 7.5 in mounting base — standard Copeland footprint for this frame

Specifications

Brand Emerson Copeland
Model ZR54K5E-PFV-800
Serial (unit pictured) 21JD0565L
Compressor type Hermetic scroll
Refrigerant R-22, R-407C
Capacity 53,500 BTU/hr (R-22 rating); 50,100 BTU/hr at 45/130°F (R-407C)
Tonnage 4.5 Ton nominal
Horsepower 4.5 HP
Voltage 208–230 V
Phase 1
Frequency 60 Hz
Locked rotor amps 146.0 A
Max operating current 34.0 A
Run capacitor (not included) 80 MFD, 370 V
Oil POE, 42 oz initial charge
Suction connection 7/8 in stub
Discharge connection 1/2 in stub
Dimensions 9.69 × 9.69 × 16.94 in
Mounting 7.50 × 7.50 in
Weight 72.5 lb
Package size 15 × 14 × 21 in, original carton (damaged)
Condition New
Quantity 1

What's included

  • 1 Emerson Copeland ZR54K5E-PFV-800 scroll compressor (unit pictured, in its original damaged carton — carton label serial matches the unit)

Frequently asked questions

Is this compressor for R-410A systems?

No. The ZR54K5E-PFV-800 is an R-22 / R-407C compressor. Check your nameplate before ordering — it is not a substitute for a ZP (R-410A) model.

Is this really 4.5 ton or 5 ton?

Copeland rates this frame at 53,500 BTU/hr on R-22, sold as the 4.5-ton / 54K class. Some sellers round it to 5 ton — the nameplate model is what matters.

Does it come with capacitors or mounting hardware?

No. The run capacitor (80 MFD / 370 V) and any start components are external, system-side parts and are not included.

Is the exact unit in the photos the one I get?

Yes. Quantity is 1 and the serial number in the photos (21JD0565L) is the unit that ships, in its original carton.

Stock note: New, 1 on hand at Mel Supply, Columbus Warehouse (Columbus, KS) and ready to ship.
